About this product
Lightweight Armor-Piercing Protection for Professionals Who Refuse to Compromise

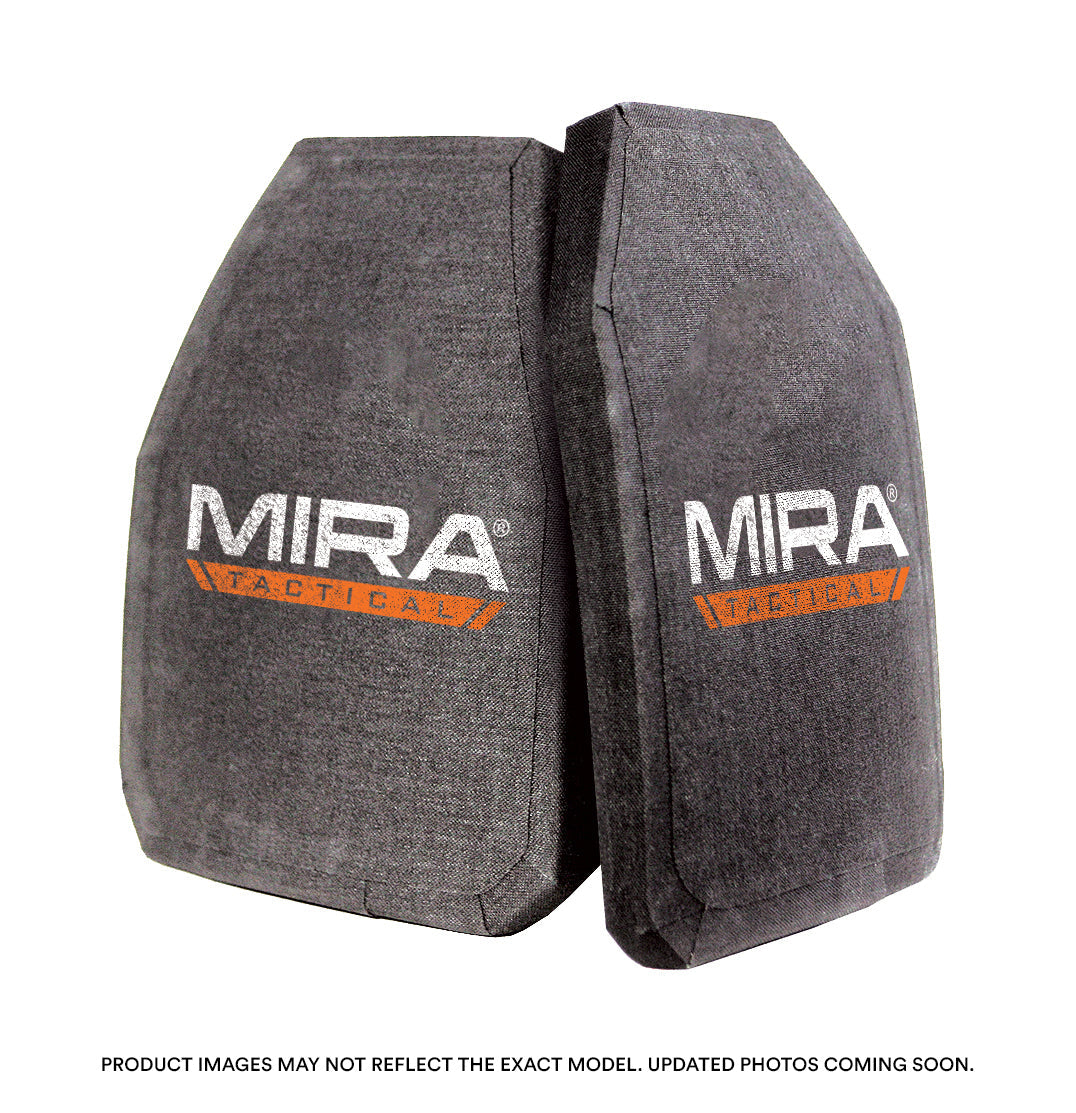

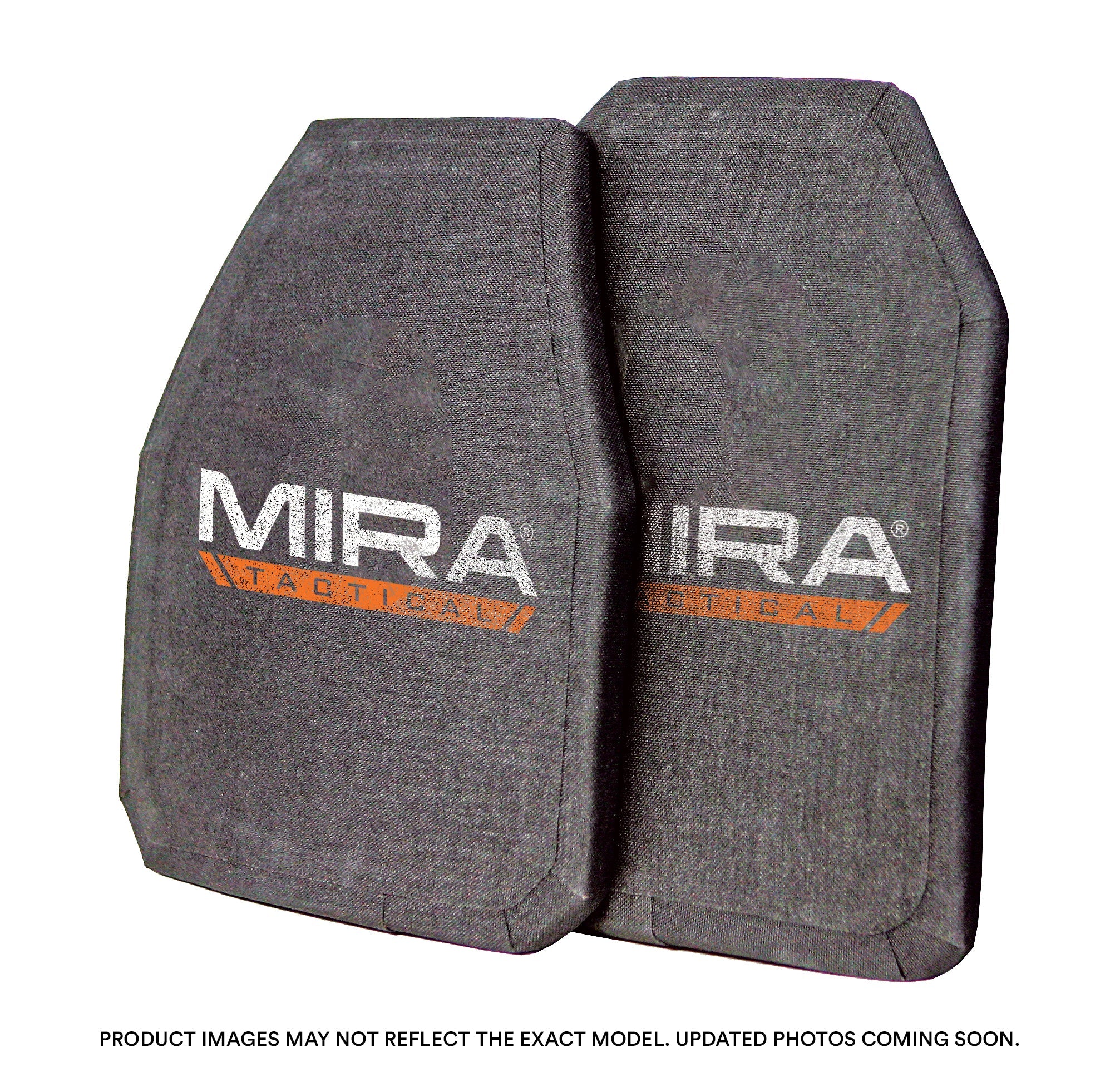

When the threat is severe and time is critical, trust the MIRA Tactical 4800 Series Level IV Body Armor Plates—the ultimate fusion of ballistic performance, mobility, and comfort.
Built in the USA and certified to NIJ 0101.06 standards, the 4800 Series represents the cutting edge of Hesco’s armor technology. These Level IV standalone plates are engineered to stop armor-piercing (AP) and enhanced-performance rifle threats, delivering elite protection with significantly reduced weight compared to other Level IV options.
Designed for military operators, tactical professionals, and preparedness experts, the 4800 Series combines combat-proven materials with ergonomic precision for long-term wear and reliable defense in the field.
Level IV Protection. Ultra-Light Performance.
The 4800 Series provides true Level IV standalone protection, capable of defeating 7.62×63mm M2 AP and other AP rounds at velocities up to 2,910 ft/s (887 m/s).
Hesco 4800 Tech Sheet 250115.
With a thickness of only 1.04 inches (26 mm) and an areal density of 6.93 lb/ft², these plates deliver maximum stopping power in a lightweight, multi-curve design—ensuring superior comfort and reduced fatigue during prolonged operations.
Key Features
- NIJ Level IV Certified: Meets and exceeds NIJ Standard 0101.06 ballistic requirements for armor-piercing rifle threats.
- Standalone Capability: Provides full protection without requiring soft armor backing.
- Armor-Piercing Defense: Defeats 7.62×63mm AP M2, 7.62×51mm M61, and other high-velocity threats.
- Ultra-Light Construction: Weighs as little as 3.2 lb (1.5 kg)—among the lightest Level IV plates available.
- Multi-Hit Resilience: Tested to withstand multiple impacts from rifle rounds across lead-core, mild steel, and AP ammunition types.
- Ergonomic Multi-Curve Design: Conforms to the body for improved mobility and comfort under load.
- Made in the USA: Manufactured with precision and rigor under Hesco’s globally recognized ballistic engineering standards.
Cut Options and Dimensions
The MIRA Tactical 4800 Series comes in Shooter Cut and SAPI Cut configurations to provide mission-specific balance between protection, coverage, and mobility.
Hesco 4800 Tech Sheet 250115.
Shooter Cut – Multi-Curve
| Model | Dimensions (W × L) | Weight |
|---|---|---|
| 4800-SH-MC-L | 10.00" × 12.00" (254 × 305 mm) | 4.9 lb (2.2 kg) |
| 4800-SH-MC-S | 8.00" × 10.00" (203 × 254 mm) | 3.2 lb (1.5 kg) |
SAPI Cut – Multi-Curve
| Model | Dimensions (W × L) | Weight |
|---|---|---|
| 4800-SA-MC-XL | 11.00" × 14.00" (279 × 356 mm) | 6.7 lb (3.1 kg) |
| 4800-SA-MC-L | 10.25" × 13.25" (260 × 337 mm) | 5.8 lb (2.7 kg) |
| 4800-SA-MC-M | 9.50" × 12.50" (241 × 318 mm) | 5.1 lb (2.3 kg) |
| 4800-SA-MC-S | 8.75" × 11.75" (222 × 298 mm) | 4.3 lb (2.0 kg) |
Comprehensive Threat Protection
According to the Hesco 4800 Threat Performance Matrix (page 1), each plate has been independently tested to defeat multiple high-velocity threats across lead-core, mild steel-core, enhanced performance, and armor-piercing categories.
Hesco 4800 Tech Sheet 250115:
| Ammunition | Max Velocity | Core Type |
|---|---|---|
| 5.56×45mm M193 | 3,280 ft/s (1,000 m/s) | Lead Core |
| 7.62×39mm M67 | 2,410 ft/s (735 m/s) | Lead Core |
| 7.62×51mm M80 | 2,810 ft/s (856 m/s) | Lead Core |
| 7.62×63mm JSP | 2,794 ft/s (852 m/s) | Lead Core |
| 5.56×45mm M855 / SS109 | 3,150 ft/s (960 m/s) | Mild Steel Core |
| 7.62×39mm M43 | 2,410 ft/s (735 m/s) | Mild Steel Core |
| 7.62×54R LPS | 2,832 ft/s (863 m/s) | Enhanced Performance |
| 5.56×45mm M855A1 | 3,180 ft/s (969 m/s) | Enhanced Performance |
| 7.62×51mm M80A1 | 3,050 ft/s (930 m/s) | Enhanced Performance |
| 7.62×39mm API | 2,410 ft/s (735 m/s) | Armor Piercing Core |
| 7.62×54R B-32 API | 2,850 ft/s (869 m/s) | Armor Piercing Incendiary |
| 7.62×51mm M61 | 2,830 ft/s (863 m/s) | Armor Piercing Core |
| 7.62×63mm AP M2 | 2,910 ft/s (887 m/s) | Armor Piercing Core |
This performance matrix confirms multi-hit durability across advanced ballistic threats, giving you reliable defense in the harshest conditions.
Technical Specifications
| Feature | Specification |
|---|---|
| Protection Level | NIJ Level IV (Standalone) |
| Cut Type | Shooter Cut / SAPI Cut |
| Curve Type | Multi-Curve |
| Thickness | 1.04" (26 mm) |
| Areal Density | 6.93 lb/ft² |
| Finish | Water-resistant ballistic fabric |
| Testing Standard | NIJ Standard 0101.06 Certified |
| Country of Manufacture | USA |
Why Choose the MIRA Tactical 4800 Series
The 4800 Series is engineered for professionals who need uncompromising armor-piercing defense in a lightweight, comfortable package. With its certified protection, advanced material design, and Hesco’s trusted craftsmanship, this armor ensures you can operate with confidence in any environment.
Life Without the 4800 Series Looks Like:
- Limited protection against AP and enhanced-performance rifle threats.
- Heavy, restrictive armor that slows mobility.
- Uncertainty under extreme conditions.
Life With the 4800 Series Looks Like:
- Lightweight, ergonomic protection that keeps you mission-ready.
- Certified defense against the toughest ballistic threats.
- Confidence backed by Hesco and MIRA Tactical’s proven standards.
Frequently Asked Questions About the 4800 Series Armor
What makes the 4800 Series different from the 4601 or 4403 plates? The 4800 Series offers Level IV standalone protection with reduced weight and thickness compared to the 4601. It provides the same certified stopping power but with enhanced comfort and mobility for long-duration missions.
Are the 4800 plates standalone? Yes. The 4800 Series is fully standalone, meaning it does not require soft armor backing to achieve Level IV ballistic certification.
Can the 4800 stop armor-piercing rounds? Absolutely. The plates are rated to stop multiple armor-piercing rounds, including 7.62×63mm AP M2 and 7.62×51mm M61 AP, verified under NIJ .06 testing.
Who should use the 4800 Series armor? The 4800 Series is ideal for law enforcement, tactical operators, military personnel, and prepared civilians who require maximum protection with minimal weight.
Will the 4800 Series fit standard carriers? Yes. These plates are compatible with most standard plate carriers, available in Shooter and SAPI cuts for versatile fitting.
How should I maintain my armor? Clean with a soft, damp cloth. Do not submerge, machine wash, or expose to extreme heat. Store in a cool, dry environment away from direct sunlight.
Be Ready for the Unpredictable
The MIRA Tactical 4800 Series Level IV Body Armor Plates combine elite ballistic performance, lightweight comfort, and combat-proven design to deliver protection you can trust in any environment. Whether on duty or preparing for the worst, the 4800 Series ensures you’re ready when it matters most.
Stay protected. Stay prepared. Trust MIRA Tactical.
